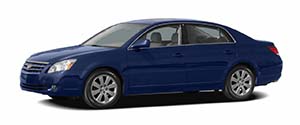

2005 Toyota Avalon XLS XL

Need this key blank for this to work: TOY43AT4

The Toyota Electronic Control Module does not have programming modes without a pre-programmed key. If there is no key available that is already programmed into the module, the module must be replaced.

To delete all but one key from the unit
1. Simultaneously depress and release brake and accelerator pedals 1 time.
2. Insert an existing master key into the ignition cylinder. Do not turn the key from the OFF (LOCK) position.
3. Within fifteen seconds of inserting the key, depress and release the accelerator pedal six times.
4. Within twenty seconds of completing the above step, depress and release the brake pedal seven times.
5. The security light will flash, indicating all keys other than the one being used have been deleted.
6. Remove the key from the ignition cylinder within ten seconds. It will be the only key still programmed to work.

Add Duplicate Key
1. Simultaneously depress and release brake and accelerator pedals 1 time.
2. Insert existing master key into ignition.
3. Within 15 seconds depress and release accelerator pedal 5 times.
4. Within 20 seconds depress and release the brake pedal 6 times and remove key.
5. Within 10 seconds insert new key into ignition.
6. Within 10 seconds depress and release the accelerator pedal 1 time.
7. After 80 seconds new key is registered and security light goes off.
8. Remove new key and depress and release brake pedal 1 time.
